  Dry Container

  • D2 : 20ft Dry Container
  • D4 : 40ft Dry Container
  • D5 : 40ft High Cube Dry Container
  • D7 : 45ft High Cube Dry Container

•

  Reefer Container

  • R2 : 20ft Steel Reefer Container
  • R5 : 40ft High Cube Steel Reefer Container
  • R5 : 40ft High Cube Aluminum Reefer Container
  • R9 : 40ft High Cube Ultra Freezer Reefer Container

•

  Special Container

  • O2 : 20ft Open Top Container
  • O4 : 40ft Open Top Container
  • O5 : 40ft Open Top High Cube Container

•
  • S2 : 20ft Sliding Open Top Container
•
  • F2 : 20ft Flat Rack Container
  • F4 : 40ft Flat Rack Container
  • F5 : 40ft High Cube Flat Rack Container
•
  • A4 : 40ft Adjustable Flat Rack Container(SuperRack)
•

  Chassis

  • SF2 : 20ft Regular Chassis
  • SL2 : 20ft Slider Chassis
  • GN4 : 40ft Gooseneck Chassis
  • GN5 : 45ft Gooseneck Chassis
  • EG5 : 45ft Extendable Gooseneck Chassis

•

  M.G.Set

  • CLG : Clip-on type
  • UMG : Under mounted type

Purpose

For a general dry cargo

Features

• Max Gross Weight(Cargo Max Loading Weight + Container Tare Weight) for 20ft Dry is 30,480kg adjusted to equipment produced from 2000 to the present.
  (24,000kg adjusted to equipment produced before 1999)
• Max Gross Weight for 40FT, 40ft H/C, 45ft H/C Dry is 32,500kg adjusted to equipment produced from 2002 to the present.
  (30,480kg adjusted to equipment produced in late 1990s)

Type of Equipment and Specification

Specification of equipments can be slightly different from the below table by manufacturing year and manufacturer.

20ft Dry Container

Internal Dimension
Length	5,898 mm	19 ft 4.20 in
Width	2,352 mm	7 ft 8.59 in
Height	2,393 mm	7 ft 10.22 in
Door Opening
Width	2,340 mm	7 ft 8.13 in
Height	2,280 mm	7 ft 5.77 in
Weight
Max Gross	30,480 (24,000) kg	67,200 (52,910) lb
Tare	2,200 (2,290) kg	4,850 (5,050) lb
Max Payload	28,280 (21,710) kg	62,350 (47,860) lb
Load Capacity
	33.2 cubic meters	1,173 cubic feet

40ft Dry Container

Internal Dimension
Length	12.032 mm	39 ft 5.70 in
Width	2,352 mm	7 ft 8.59 in
Height	2,393 mm	7 ft 10.22 in
Door Opening
Width	2,340 mm	7 ft 8.13 in
Height	2,280 mm	7 ft 5.77 in
Weight
Max Gross	32,500 (30,480) kg	71,650 (67,200) lb
Tare	3,620 (3,770) kg	7,980 (8,310) lb
Max Payload	28,880 (26,710) kg	63,670 (58,890) lb
Load Capacity
	68.0(67.4) cubic meters	2,385(2,379) cubic feet

40ft High Cube Dry Container

Internal Dimension
Length	12,032 mm	39 ft 5.70 in
Width	2,352 mm	7 ft 8.59 in
Height	2,698 mm	8 ft 10.22 in
Door Opening
Width	2,338 mm	7 ft 8.06 in
Height	2,585 mm	8 ft 5.77 in
Weight
Max Gross	32,500 (30,480) kg	71,650 (67,200) lb
Tare	3,820 (3,990) kg	8,420 (8,880) lb
Max Payload	28,680 (26,490) kg	63,230 (58,400) lb
Load Capacity
	76.4(76.0) cubic meters	2,698(2,684) cubic feet

45ft High Cube Dry Container

Internal Dimension
Length	13,556 mm	44 ft 5.69 in
Width	2,352 mm	7 ft 8.59 in
Height	2,698 mm	8 ft 10.22 in
Door Opening
Width	2,340 mm	7 ft 8.13 in
Height	2,585 mm	8 ft 5.77 in
Weight
Max Gross	32,500 (30,480) kg	71,650 (67,200) lb
Tare	4,880 kg	10,760 lb
Max Payload	27,620 (25,600) kg	60,890 (56,440) lb
Load Capacity
	86.0 cubic meters	3,040 cubic feet

Purpose

For a special cargo which needs atmosphere control setting the temperature

Component

Unit + Box

Temperature settings

• General reefer container setting temperature : +30℃ ~ -30℃
• Ultra Freezer setting temperature : -10°C ~ -60°C

Refrigerant

Eco-friendly Refrigerant

Features

• 20’Steel REEFER’s Max Gross Weight : 30,480kg (Applicable from production in 2002)
• 40’H/C Steel REEFER’s Max Gross Weight : 34,000kg (Applicable from production in 2002)
• ULTRA FREEZER :From -10°C to -60°C available (For value added commodity such as tuna, Ice-cream etc.)

Type of Equipment and Specification

Specification of equipments can be slightly different from the below table by manufacturing year and manufacturer.

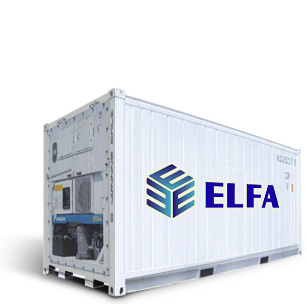

20ft Steel Reefer Container

Internal Dimension
Length	5,456 mm	17 ft 10.80 in
Width	2,290 mm	7 ft 6.16 in
Height	2,262 mm	7 ft 5.06 in
Door Opening
Width	2,290 mm	7ft 6.16 in
Height	2,251 mm	7 ft 4.63 in
Weight
Max Gross	30,480 (24,000) kg	67,200 (52,910) lb
Tare	2,930 (2,960) kg	6,460 (6,530) lb
Max Payload	27,550 (21,040) kg	60,740 (46,380) lb
Load Capacity
	28.3 cubic meters	998 cubic feet

40ft High Cube Steel Reefer Container

Internal Dimension
Length	11,588 mm	38 ft 0.22 in
Width	2,290 mm	7 ft 6.16 in
Height	2,557.5 mm	8 ft 4.69 in
Door Opening
Width	2,294 mm	7 ft 6.31 in
Height	2,569 mm	8 ft 5.14 in
Weight
Max Gross	34,000 (30,480) kg	74,960 (67,200) lb
Tare	4,600 (4,800) kg	10,140 (10,580) lb
Max Payload	29,400 (25,680) kg	64,815 (56,620) lb
Load Capacity
	67.9 cubic meters	2,400 cubic feet

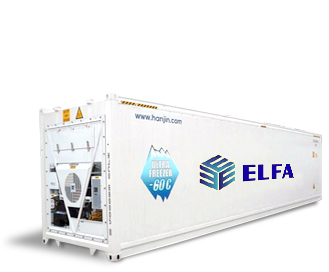

40ft High Cube Ultra Freezer Reefer Container

Internal Dimension
Length	11,550 mm	37 ft 10.72 in
Width	2,220 mm	7 ft 2.61 in
Height	2,485 mm	8 ft 1.83 in
Door Opening
Width	2,312 mm	7 ft 7.03 in
Height	2,562 mm	8 ft 4.88 in
Weight
Max Gross	34,000 (30,480) kg	74,960 (67,200) lb
Tare	5,890 kg	12,990 lb
Max Payload	28,110 (26,370) kg	61,970 (58,140) lb
Load Capacity
	60.6 cubic meters	2,140 cubic feet

Construction of Reefer Container

UNIT

Purpose

• Refrigerating machine that supplies with required temperature into BOX.
• Once electricity is provided to UNIT, cool or hot air is provided to inside of container.

Attached Position

Container Front. (Opposite side of door)

BOX

A container that carries and preserves cargo by maintaining temperature from UNIT

• Operating Procedure of Reefer container
• Operation Principle of UNIT & Main Spare parts of UNIT
• Structure of Reefer container BOX and name of each port

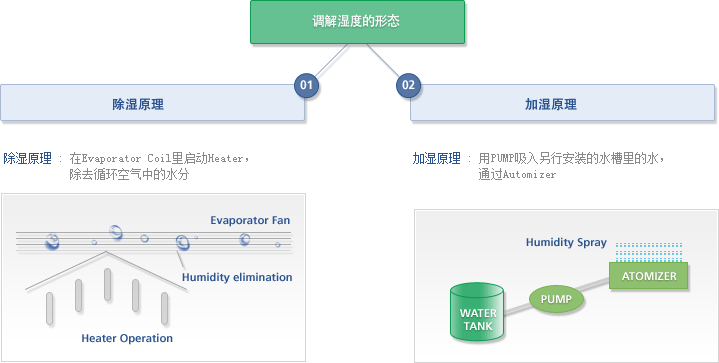

1) Humidity Control Container

Reefer Container that makes Humidity Control possible.

2) CA (Controlled Atmosphere) Container

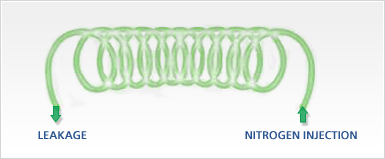

By controlling air of container inside intentionally to restrain a respiration of cargo, maintaining cargo's freshness. By increasing nitrogen ratio and decreasing oxigen ratio, goods are nearly suffocated.

3) AV＋(Automatic Ventilation System)

Purpose

Roof which is made of special water proof material can be opened and closed, cargo can be easily loaded.

- With Sliding Bar system, roof can be easily opened and closed.

Features

• Specification in ( ) is of 20ft vans manufactured before 1994, 40ft vans before 2007.
• Specification of equipments can be slightly different from the below table by manufacturing year and manufacturer.

Type of Equipment and Specification

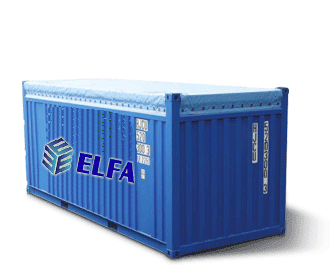

20ft Open Top Container

Internal Dimension
Length	5,893(5,898) mm	19 ft 4.01 in (19 ft 4.21 in)
Width	2,346 mm	7 ft 8.36 in
Height	2,362(2,381) mm	7 ft 9 in (7 ft 9.74 in)
Door Opening
Width	2,337 mm	7 ft 8.01 in
Height	2,280(2,244) mm	7 ft 5.76 in (7 ft 4.35 in)
Weight
Max Gross	30,480 (24,000) kg	67,200 (52,910) lb
Tare	2,320 (2,390~2,450) kg	5,120 (5,400) lb
Max Payload	28,160 (21,550~21,610) kg	62,080 (47,510) lb
Load Capacity
32.7 cubic meters 1,153 cubic feet

40ft Open Top / 40ft Open Top High Cube Container

Internal Dimension
Length	12,022 (12,032) mm	39 ft 5.31 in (39 ft 5.70 in)
Width	2,352(2,346) mm	7 ft 8.60 in (7 ft 8.36 in)
Height	2,348 (2,381) mm High Cube [2,653mm]	7 ft 8.44 in (7 ft 9.74 in) High Cube [8ft 8.4 in]
Door Opening
Width	2,340 (2,337) mm	7 ft 8.12in (7 ft 8.01 in)
Height	2,280 (2,244) mm	7 ft 5.76 in (7 ft 4.35 in)
Weight
Max Gross	30,480 kg	67,200 lb
Tare	3,880 (4,020~4,160) kg	8,550 (9,080) lb
Max Payload	26,600 (26,320) kg	58,650 (58,025) lb
Load Capacity
66.4 (66) cubic meters 2,344 (2,346) cubic feet
※ 40ft Open top High cube container can accomodate a cargo lower than     2,653mm as in guage cargo.

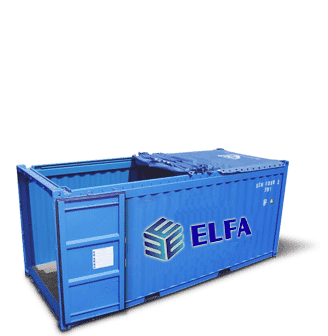

20ft Sliding Open Top Container

Internal Dimension
Length	5,893 mm	19 ft 4 in
Width	2,346 mm	7 ft 8.28 in
Height (Under Top)	2,124 mm	6 ft 11.64 in
Door Opening
Width	2,336 mm	7 ft 7.94 in
Height	2,280 mm	7 ft 5.75 in
Weight
Max Gross	30,480 kg	67,200 lb
Tare	2,340 kg	5,160 lb
Max Payload	28,140 kg	62,040 lb
Load Capacity
32.6 cubic meters 1,153 cubic feet

Purpose

Without side pannels and a roof, Flat rack contaiener is consist of 4 posts and End panels - Cargo can be loaded on front, behind, left, right and upper side.
Supperack Container is also available - its posts can be extended up to 1.5m (See the attache manual)

Features

• Specification in ( ) is manufactured before 2006
• Specification of equipments can be slightly different from the below table by manufacturing year and manufacturer.

Type of Equipment and Specification

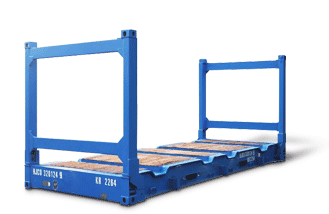

20ft Flat Rack Container

Internal Dimension
Length	5,638 (5,958) mm	18 ft 5.97 in (19 ft 6.57 in)
Width	2,226( 2,018) mm	7 ft 3.64 in (6 ft 7.45 in)
Height	2,233 (2,077) mm	7 ft 3.91 in (6 ft 9.77 in)
Weight
Max Gross	34,000 (30,480) kg	74,960 (67,200) lb
Tare	2,830 (2,720) kg	6,240 (6,000) lb
Max Payload	31,170 (27,760) kg	68,720 (62,120) lb

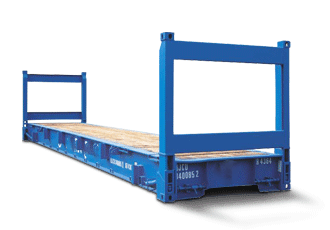

40ft Flat Rack / 40ft High Cube Flat Rack Container

Internal Dimension
Length	11,986(11,652) mm	39 ft 3.89 in (38 ft 2 in)
Width	2,236(2,374) mm	7 ft 4.03 in(7 ft 9.4 in)
Height	1,968(2,364) mm High Cube [2,264mm]	6 ft 5.48 in(7 ft 5 in) High Cube [7.42ft]
Weight
Max Gross	45,000(50,000) kg	99,210(110,230) lb
Tare	5,980(5,250) kg	13,183(11,570) lb
Max Payload	39,020(44,750) kg	86,023(98,650) lb

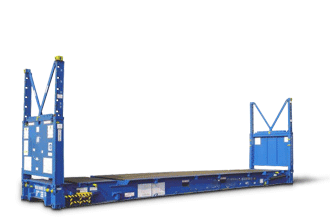

40ft Adjustable Flat Rack Container (Super Rack)

Internal Dimension
Length between Corner Posts	11,615 mm	38 ft 2.18 in
Platform Width	2,374 mm	7 ft 9.36 in
Height (Without extension)	1,954 mm	6 ft 4.92 in
Height (Max Extension)	3,478mm	11 ft 4.92 in
Weight
Max Gross	45,000 kg	99,210 lb
Tare	5,800 kg	12,790 lb
Max Payload	39,200 kg	86,420 lb

20ft Slider

Description	Metric	U.S.
Kingpin Location	0.46 m	1 ft 6 in
Tandem Setting	1.37 m	4 ft 6 in
Tare Weight	3,085 kg	6,800 lb
Length	7.16 m	23 ft 6 in
Width	2.44 m	8 ft
Height	1.34 m	4 ft 6 in
Landing Gear Location	2.44 m	8 ft

40ft Goose Neck

Description	Metric	U.S.
Kingpin Location	0.76 m	2 ft 6 in
Tandem Setting	1.37 m	4 ft 6 in
Tare Weight	3,085 kg	6,800 lb
Length	12.4 m	40 ft 8 in
Width	2.44 m	8 ft
Height	12.2 m	4 ft
Landing Gear Location	3.3 m	11 ft

45ft Extension Goose Neck

Description	Metric	U.S.
Kingpin Location	0.76 m	2 ft 6 in
Tandem Setting	1.37 m	4 ft 6 in
Tare Weight	3,175 kg	7,000 lb
Length	13.92 m	45 ft 8 in
Width	2.44 m	7 ft 12 in
Height	12.2 m	4 ft
Landing Gear Location	3.3 m	11 ft

Clip-on type

Description	Metric	U.S.
Fuel tank capacity	386 liter	102 gallon
Weight	814 kg	1,795 lb

Under Mount Type

Description	Metric	U.S.
Fuel tank capacity	257 liter	68 gallon
Weight	712 kg	1,570 lb
